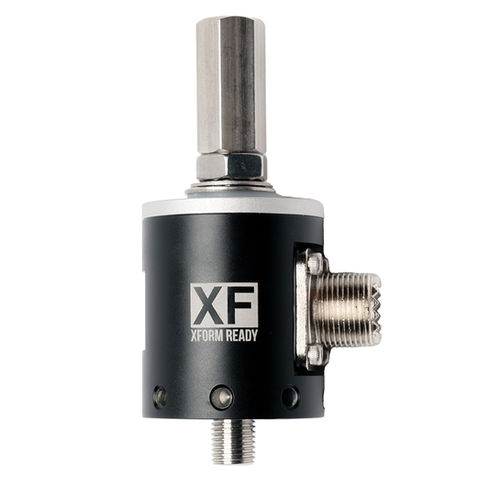

Scout XF

Scout XF is the foundation of the modular REZ Scout antenna system, providing a compact field-ready platform for vertical, loaded vertical, wire, loop, and other portable HF antenna configurations.

BUY NOW

DESCRIPTION

Scout XF is the foundation of the REZ Scout antenna system, a compact modular platform designed to support a wide range of portable HF antenna configurations from a common field-ready base.


Compatible radiators, loading coils, XFORM matching modules, mounts, and deployment accessories allow Scout XF to be configured for quarter-wave and loaded verticals as well as wire and loop antennas. Components can be changed as operating requirements, available space, bands, or field conditions change while retaining the same core platform.

DOWNLOADS

USER MANUAL

TECHNICAL SPECIFICATIONS

Size

3.0 in L × 1.5 in Dia

Connector

SO-239 (UHF Female)

Power Rating

500 W SSB / 200 W Digital

Weight

5.2 oz

Mounting Thread

3/8-24 radiator connection

Materials

Anodized aluminum and stainless steel

Impedance Ratio

​

Compatibility

Scout radiators, loading coils, XFORM matching units, mounts, radial accessories, and compatible 3/8-24 antenna components

Extended Length

​

Collapsed Length

​

Sections

​

Radial Connections

8 × 4 mm radial ports

Resonant Bands

​

Finish

​

Included Items

​

VIDEO SETUP GUIDE
